Product Overview

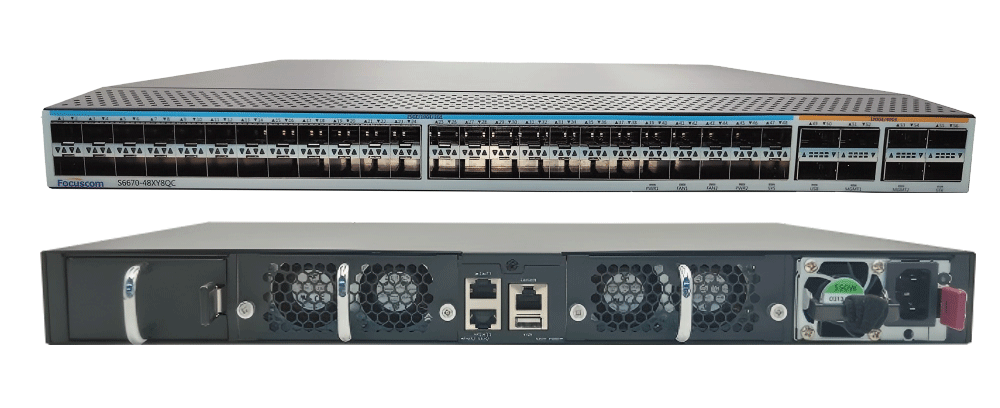

The S6670-48XY8QC is a high-performance, next-generation Layer 3 switch designed for enterprise, data center, and carrier-grade network environments. Built to meet the ever-growing demands for scalable and high-density connectivity, this switch combines 48 x 10/25G QSFP28 ports with 8 x 40/100G QSFP28 uplink ports, providing a versatile and future-proof solution for modern networks. The S6670-48XY8QC is engineered to deliver superior speed, flexibility, and high availability, making it ideal for a wide range of applications, from data center core switches to aggregation layers in large-scale enterprise networks.

Device Information

● 48*10GE SFP+/25GE SFP28

● 8*40GE QSFP/100GE QSFP28

● AC or DC redundant power supply

● 4Tbps Exchange Capacity

● Product Size：440*410*44mm

Key Features

Stackable

-Support Combine the processing power of multiple switches into a single logical device.

-Support When a switch in the stack system fails, traffic can be automatically switched to other switches, network availability and redundancy.

-Support Stacking simplifies the management process. Administrators only need to manage one logical device.

High-density 25G fiber access

-Provides high-density connectivity with 48*10GE SFP+/25GE QSFP28 ports, ideal for access and aggregation layers in data centers, enterprise networks, and service provider environments.

-Supports flexible, high-speed connections for a wide range of networking applications, including high-performance computing, cloud services, and virtualized environments.

Dual-FRU Redundant Power Supply

-Features dual FRU (Field Replaceable Unit) power supplies with hot-swappable capabilities for both AC and DC power inputs, ensuring high availability.

-Redundant power supply configuration guarantees continuous operation in critical environments, minimizing downtime and service disruptions.

Equipment Stability

-Support IPv4/IPv6 dual protocol stack platform based on Linux operating system

-Support multiple link redundancy and network redundancy protocols such as STP / RSTP / MSTP / ERPS / LACP

-Support VRRP/ERRP/ERPS/MSTP/Smartlink etc. Various link redundancy and network redundancy protocol

-Support 802.3ad LACP

QoS Capabilities

-Support port speed and flow speed limit function

-Support classification based on service flow and Qos flow control function

-Support queue scheduling algorithms such as SP/WRR/SP+WRR

-Support port-based and service flow-based mirroring functions

Multi-service Capabilities

-Support DHCP Server and DHCP Relay

-Support L2-Tunnel

-Support Ethernet OAM protocol

Routing Protocol

-Support static route

-Support dynamic route such as RIP / OSPF / BGP / ISIS

Safety Mechanism

-Support ACL security filtering mechanism, which can provide security control based on MAC, IP, L4 port

-Support ARP attach automatic protection and user blocking functions

-Support DHCP attack automatic protection

-Support DHCP-snooping / IP-source-Guard / 802.1X and other security features

-Support link protection functions such as BFD, FlexLink, LACP and ERRP

-Support remote loop detection function

-Support Ethernet link detection mechanisms

-Support remote user authentication based on Tacacs+, Radius, and Local user authentication

Network Management Function

-Support CLI based on RS232 serial port, Telnet and SSHv2

-Support WEB-based configure operation management, support SNMP V1/V2/V3

-Support remote upgrade or equipment through FTP and TFTP
