Product Overview

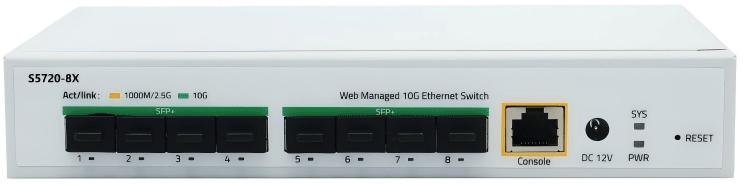

The S5720-8X is our independently developed layer3 10G managed switch. It with 8*10Gbps SFP+ fiber ports and 1*Console port. S5720-8X provides complete security policies, complete QoS policies and rich VLAN functions. It is easy to manage and maintain and meets the needs of enterprises' networking and access requirements for communities, hotels, office networks, and campus networks.
Product Information
● 8*1G/2.5G/10G Base-X SFP+ Ethernet port
● 160Gbps Switching capacity
● 119.04 Mpps forwarding rate
● DC12V/2A Power Supply
● Product Size：207*136*35mm
Key Features
Carrier-level equipment stability
- Based on Linux operating system，support IPv4/IPv6 dual protocol stack platform
- Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/LACP
Perfect safety mechanism
- Support link protection functions FlexLink, LACP
- Support remote loop detection function
- Support remote user authentication based on Tacacs+, Radius, and Local user authentication
Powerful QoS capabilities
- Support port speed and flow speed limit function
- Support classification based on service flow and Qos flow control function
- Support queue scheduling algorithms such as SP/WRR/SP+WRR
- Support port-based and service flow-based mirroring functions
Rich management protocols
- Support easy-to-use network management function
- Support CLI based on RS232 serial port, Telnet and SSHv2
- Support WEB-based configure operation management, support SNMP V1/V2/V3
- Support remote upgrade or equipment through FTP and TFTP
