| Device Parameters |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) |
| Static power consumption | 9.7 W |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 V DC, 2 A |
| Network-side Port | GPON |

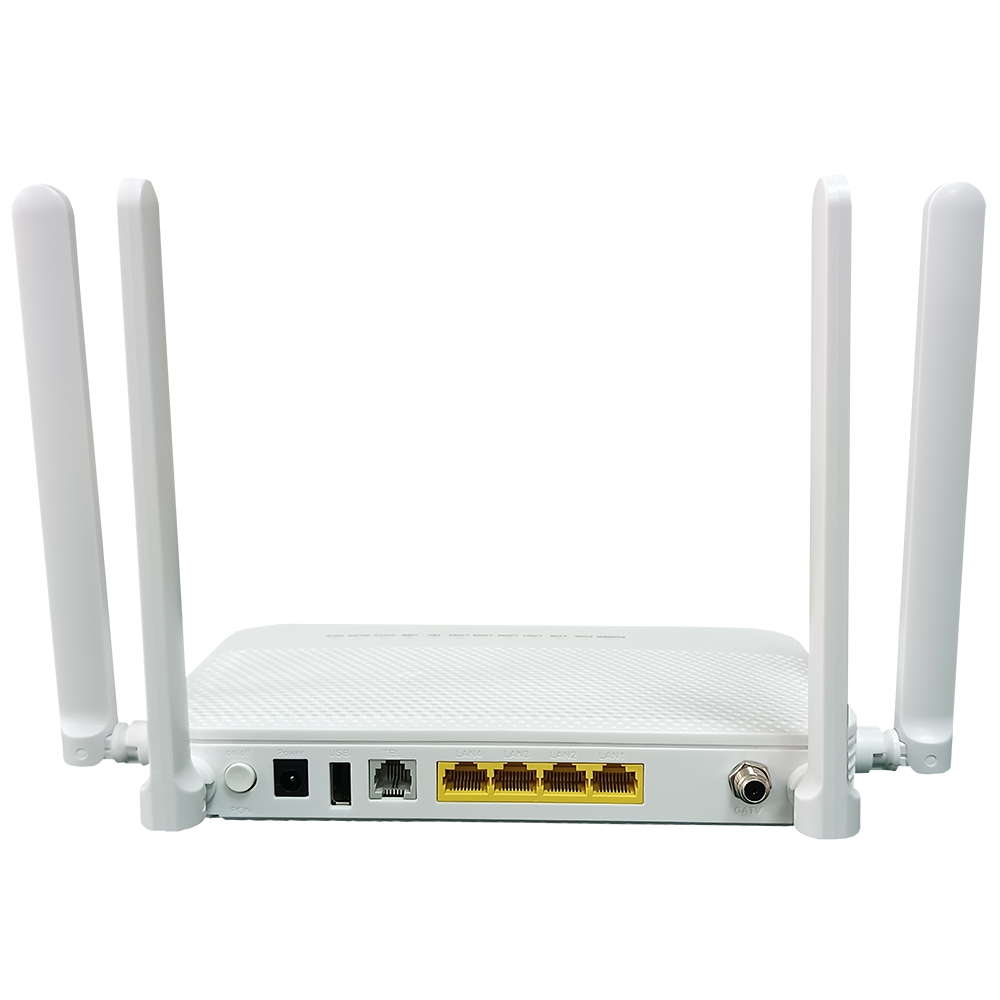

| User-side Ports | 4xGE+1xPOTS+1xUSB+CATV+2.4G/5G WIFI |

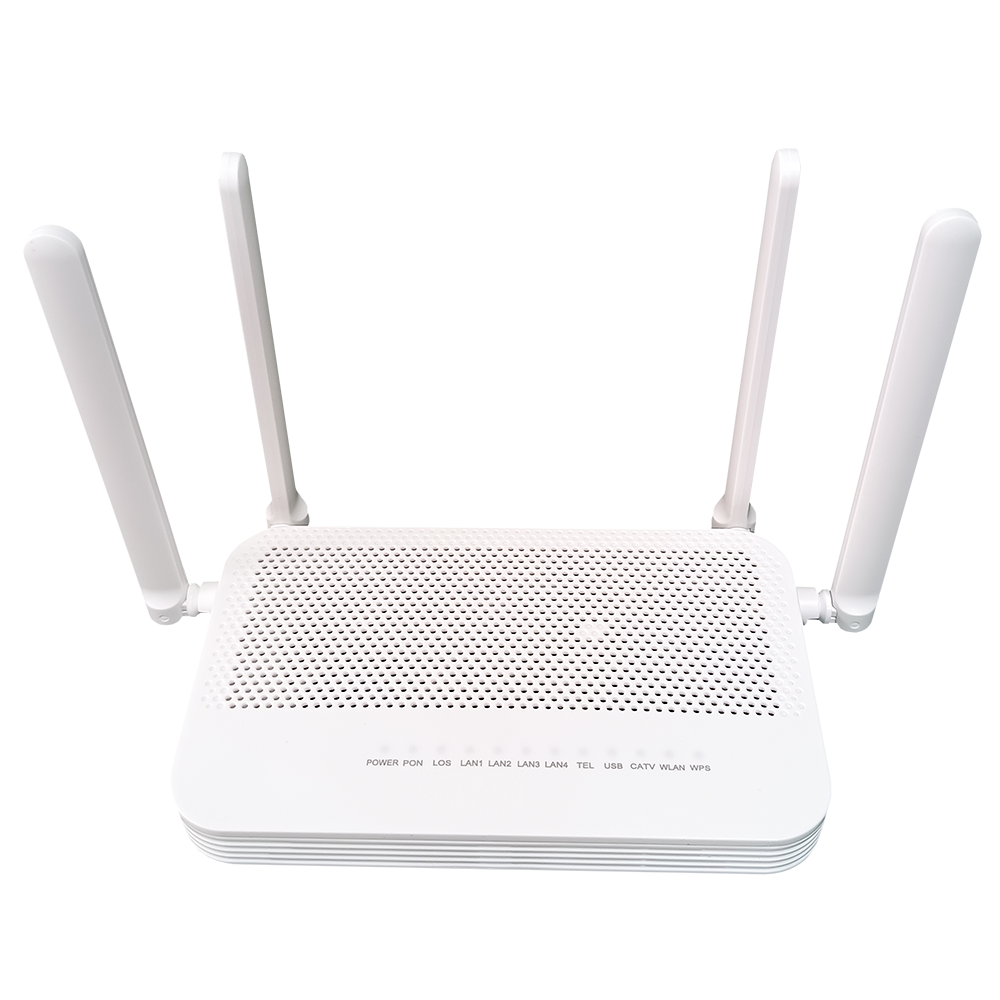

| Indicators | POWER/PON/INTERNET/USB/WLAN |
| Dimensions(length x width x height) | 295 mm x 215 mm x 25 mm |
| Weight | About 500 g |
| Interface Parameters |
| GPON Port | • Class B+ |
| • Receiver sensitivity: -27 dBm |
| • Overload optical power: -8 dBm |
| • Wavelengths: US 1310nm, DS 1490nm |
| • Wavelength blocking filter (WBF) of G.984.5 |
| • Flexible mapping between GEM Port and TCONT |
| • GPON: consistent with the SN or password |
| authentication defined in G.984.3 |
| Ethernet Port | • Ethernet port-based VLAN tags and tag removal |
| • 1:1 VLAN, N:1 VLAN, or VLAN transparent |
| transmission |
| • QinQ VLAN |
| • Limit on the number of learned MAC addresses |
| • MAC address learning |
| • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s |
| CATV Port | • Frequency Range 45 MHz to 1000 MHz |
| • Output resistance 75 ohms |
| • Received average optical power: -8dBm to +2dBm |
| • RF output power: ≥17dBmV/Ch |
| POTS Port | • G.711A/μ, G.729a/b, and G.722 encoding/decoding |
| • T.30/T.38/G.711 fax mode |
| • DTMF |
| • Emergency calls (with the SIP protocol) |
| USB Port | • USB2.0 |
| • FTP-based network storage |
| • File/Print sharing based on SAMBA |
| • DLNA function |
| WLAN | • IEEE 802.11 b/g/n (2.4G) |
| • IEEE 802.11 a/n/ac (5G) |
| • 4 x 4 MIMO (2.4G) |
| • 4 x 4 MIMO (5G) |
| • Antenna gain: 5 dBi |
| • WMM/Multiple SSIDs/WPS |
| • Air interface rate: 300 Mbit/s (2.4G), 867 Mbit/s (5G) |
| Product Function |
| Smart interconnection | • Smart Wi-Fi coverage |
| • SIP/H.248 auto-negotiation |
| • Any port any service |
| • Parental control |
| Smart service | • Scheduled Wi-Fi shutdown |
| • Smart Wi-Fi sharing: |
| Portal/802.1x authentication |
| SoftGRE-based sharing |
| Smart O&M | • IPTV video quality diagnosis |
| • eMDI |
| • Rogue ONT detection and isolation from the OLT |
| • Call emulation, and circuit test and loop-line test |
| • PPPoE/DHCP simulation testing |
| • WLAN emulation |
| Layer 3 Features | • PPPoE/Static IP/DHCP |
| • NAT/NAPT |
| • Port forwarding |
| • ALG, UPnP |
| • DDNS/DNS server/DNS client |
| • IPv6/IPv4 dual stack, and DS-Lite |
| • Static/Default routes |
| • Multiple services on one WAN port |
| Multicast | • IGMP v2/v3 proxy/snooping |
| • MLD v1/v2 snooping |
| QoS | • Ethernet port rate limitation |
| • 802.1p priority |
| • SP/WRR/SP+WRR |
| • Broadcast packet rate limitation |
| Common O&M | • OMCI/Web UI/TR069 |
| • Variable-length OMCI messages |
| • Dual-system software backup and rollback |
